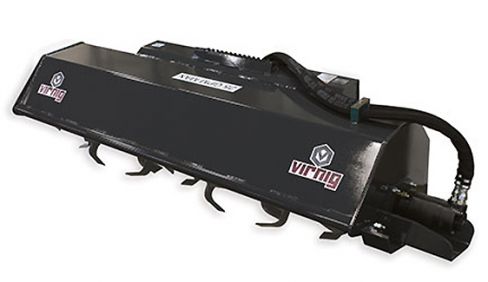

Virnig TLR54

New Equipment / Virnig / Agriculture / Tiller / TLR54

Double tap to zoom

Bi-directional rotation allows tilling going forward or in reverse.
Direct drive motor eliminates chains or belts reducing maintenance and downtime.
Tillers shaft supported on both ends by 2″ diameter bearings minimizing weight held by the motor.
Motor guarded on bottom and sides for added protection against rocks and debris.
Replaceable, heat-treated, dual-edge tines help break through clumps and tear through hard ground.
Offset to cover tire tracks, and allows the operator to till next to buildings, sidewalks, etc.

MODEL	TLR54
Working Width (Inches)	54
Overall Width (Inches)	70.5
Loader Width Coverage, Outside Tire (Inches)	68
Overall Height (Inches)	28
Overall Depth (Inches)	32
Tilling Depth (Inches)	6
Working Offset (Inches)	7.0*
Recommended Flow Rate (GPM)	15-25
Drum Diameter (Inches)	22
Number of Tines	28
Approximate Weight (Pounds)	900
Recommended Loader Capacity	Greater than 1300 pounds

*Distance between the center of the quick-tach plate and center of the working width.
