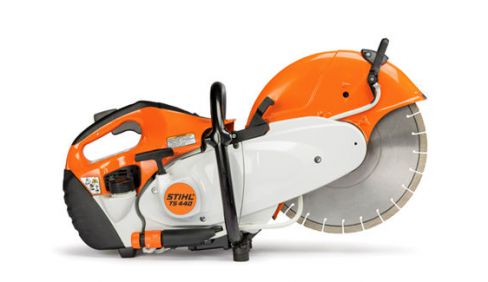

Stihl Power TS 440 STIHL Cutquik®

Double tap to zoom



Features

  • Reduced-Emission Engine Technology - Caring for Nature
    The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

  • Decompression Valve
    The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.

  • Electronic Water Control (EWC)
    Electronic Water Control allows the operator to easily adjust the flow of water while cutting and stops the water flow when the machine is at idle.

  • X2 Air Filtration System
    The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.

  • Bayonet-Style Fuel Cap
    Includes retainer for easy use, even with gloves on.

  • On/Off Switch
    Conveniently located on top of handle and recessed to prevent accidental shutdown.

  • Anti-Vibration System
    STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.

  • STIHL ElastoStart™
    The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.

  • Water Connection
    Water connection with shut-off valve and quick connector.

  • Integrated Water Hose
    Helps prevent hose damage.

  • STIHL QuickStop™ Wheel Brake
    Allows extended guard adjustability by reducing the risk of injury from kickback when the guard has been adjusted to expose the top portion of the wheel

  • Wheel Guard
    Expanded wheel guard adjustability range increases utility of machine for certain cutting circumstance

  • Choke Lever and Purge Pump Primer
    Conveniently located together for easier starting.

  • Common Features for Gasoline-Powered STIHL Cutquik® Cut-off Machines
    View the features common to many gasoline-powered STIHL Cutquik® Cut-off Machines.

Specifications

TS 440 STIHL Cutquik® Specifications - Professional Use
DISPLACEMENT 66.7 cc (4.07 cu. in.)
WEIGHT* 11.2 kg (24.7 lbs.)
FUEL TANK CAPACITY 725 cc (24.5 oz.)
ENGINE SPEED 9,000 rpm
MAXIMUM SPINDLE SPEED 2,525 rpm
ARBOR SIZE 20 mm
MAXIMUM WHEEL SIZE 350 mm (14 in.)
MAXIMUM CUTTING DEPTH 125 mm (4.9 in.)
*Dry weight includes water attachment and guard. Shown with optional STIHL diamond wheel.
