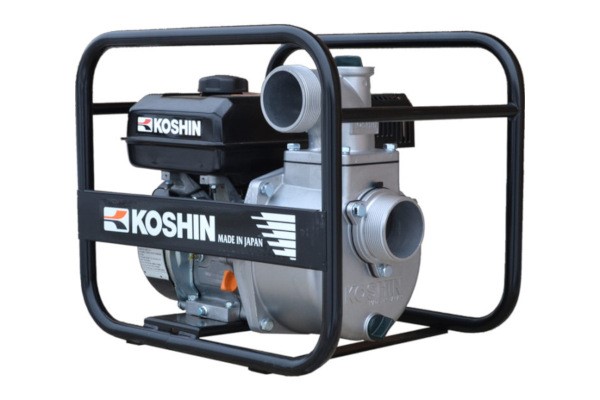

Koshin STV-80X

Double tap to zoom



Features

  • Powerful OHV Koshin engine with low oil sensor.
  • Silicon carbide mechanical seals. Increased abrasive resistance, longer life, less maintenance.
  • Impeller and volute manufactured from Spherodial Graphite cast iron for longer life, less maintenance.
  • Light weight die cast aluminum casing.
  • Full roll cage protects pump and engine with vibration isolators.
  • Strainer and wrench standard.
  • EPA & CARB Approved 4 Stroke KOSHIN K180 Engine
  • Particles up to ¼" can be pumped through

Specifications

Specifications STV-80X
PUMP
Suction/Discharge Size 3" NPT
Total Head 90 Ft.
Delivery Volume 246 GPM
Maximum Suction Lift   26 ft.
Max Solids Handling 3/8" Diameter
Max Suspended Solids 10%
Pressure 39 PSI
ENGINE
Engine Model K180
Displacement 179 cc
Horsepower 4.7 Hp
Fuel Tank Capacity .95 gal.
Fuel Gasoline
Starting Recoil
Net Weight 78 Lbs
Dimensions 21"x17"x19"
