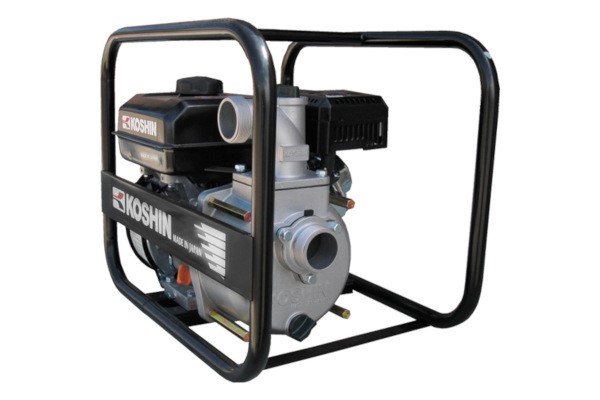

Koshin STV-50X

Double tap to zoom



Features

  • Powerful OHV Koshin engine with low oil sensor.
  • Silicon carbide mechanical seals. Increased abrasive resistance, longer life, less maintenance.
  • Impeller and volute manufactured from Spherodial Graphite cast iron for longer life, less maintenance.
  • Light weight die cast aluminum casing.
  • Full roll cage protects pump and engine with vibration isolators.
  • Strainer and wrench standard.
  • EPA & CARB Approved 4 Stroke KOSHIN K180 Engine
  • Particles up to ¼" can be pumped through

Specifications

Specifications STV-50X
PUMP
Suction/Discharge Size 2" NPT
Total Head 90 Ft.
Delivery Volume 163 GPM
Maximum Suction Lift   26 ft.
Max Solids Handling 3/8" Diameter
Max Suspended Solids  10%
Pressure 39 PSI
ENGINE
Engine Model K180
Displacement 179 cc
Horsepower 4.7 Hp
Fuel Tank Capacity .95 gal.
Continuous Run Time 2.0 Hours
Starting Recoil
Net Weight 66 Lbs
Dimensions 20"x17"x19"
