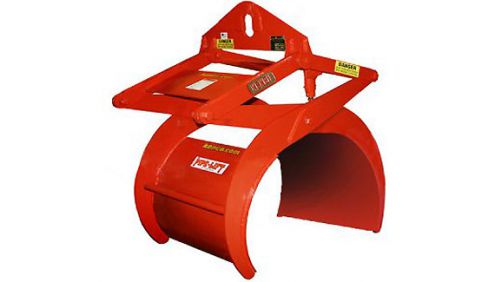

Kenco PL2750

Double tap to zoom



Features

  • This 2750 pound capacity lifter will handle outside diameter pipe sizes from 18.00 to 25.80 inches .
  • Use it with 18″ and 24″ PVC and STEEL, or lift 18″, 20″, and 24″ Ductile Iron and C900 PVC or RCP ID sizes: 15″ (19.50″ OD) and 18″ (23.00″ OD).
  • Wear Item: Medium Actuator

Specifications

MODEL PL2750
OD RANGE
INCHES/CM
18.00″ – 25.80″/
45.72 – 65.53
PVC, STEEL, ID / OD (TYP.) 18″/18.00″,
24″/24.00″
DUCTILE/ C900 PVC ID/OD (TYP.) 18″/19.50″,
20″/21.60″,
24″/25.80″
RCP ID/OD (TYP.) 15″/19.50″,
18″/23.00″
CAPACITY LBS/KG 2750 / 1247
A 46.5
B 38.5
C 28.25
WEIGHT LBS./KG 350 / 159.1
